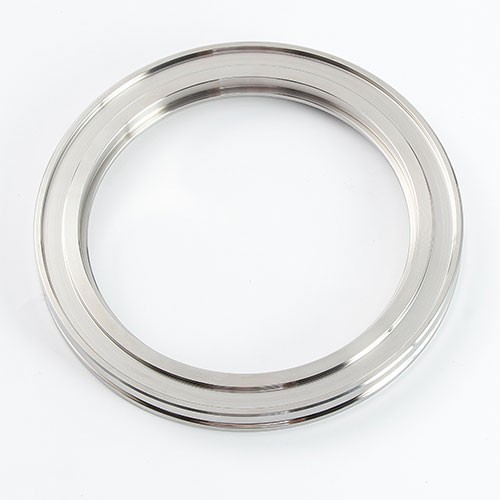

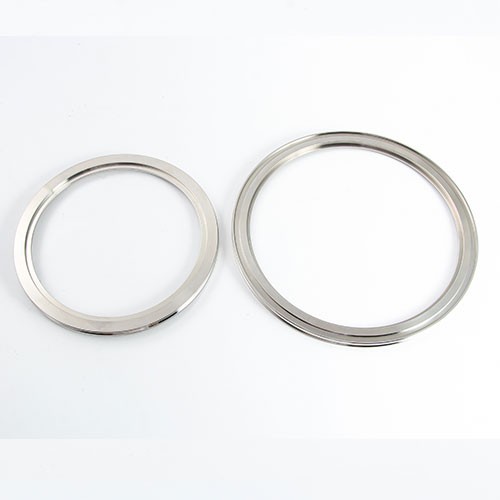

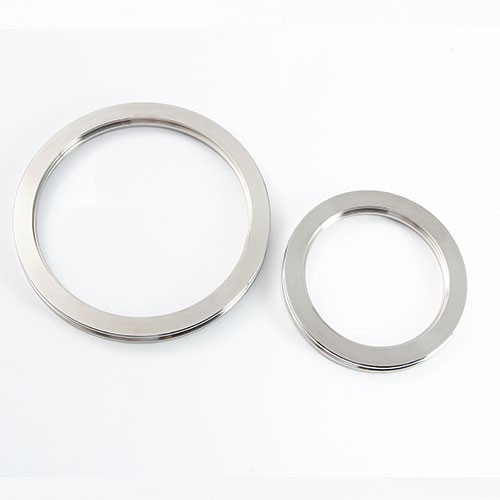

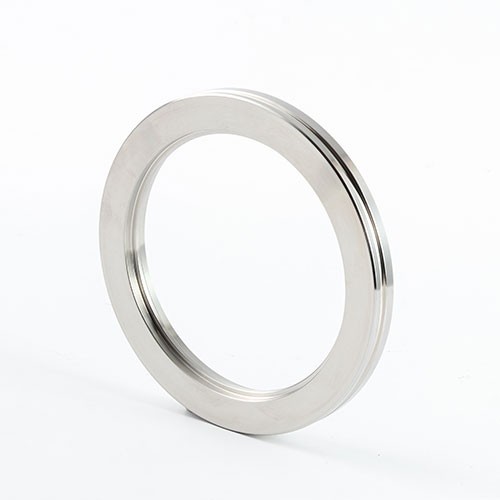

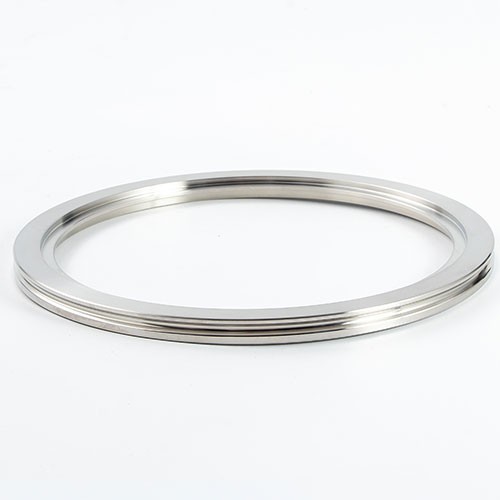

ISO-K Bored Flange

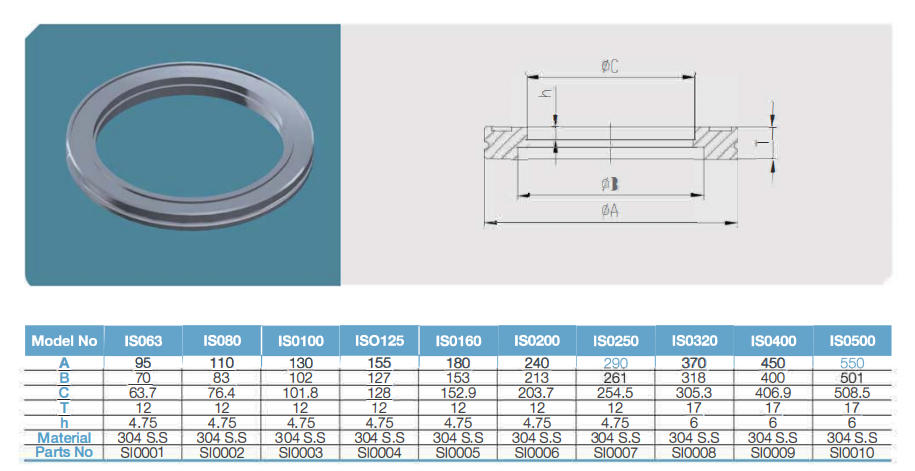

Flange Size: ISO-K63, ISO-K80, ISO-K100, ISO-K160, ISO-K200, ISO-K250, ISO-K320, ISO-K400, ISO-K500, ISO-K630
Bored Size: Bored 76.4mm, Bored 101.9mm, Bored 159.3mm or as your request.
For tube Size: OD76.1*3mm, OD101.6*2.1mm, OD159*3mm or as your request.
Material: SS304, SS304L, SS316L, SS316Ti
Seal: Claw clamp fixed into a groove and centering ring sealed
Usage: High Vacuum System
